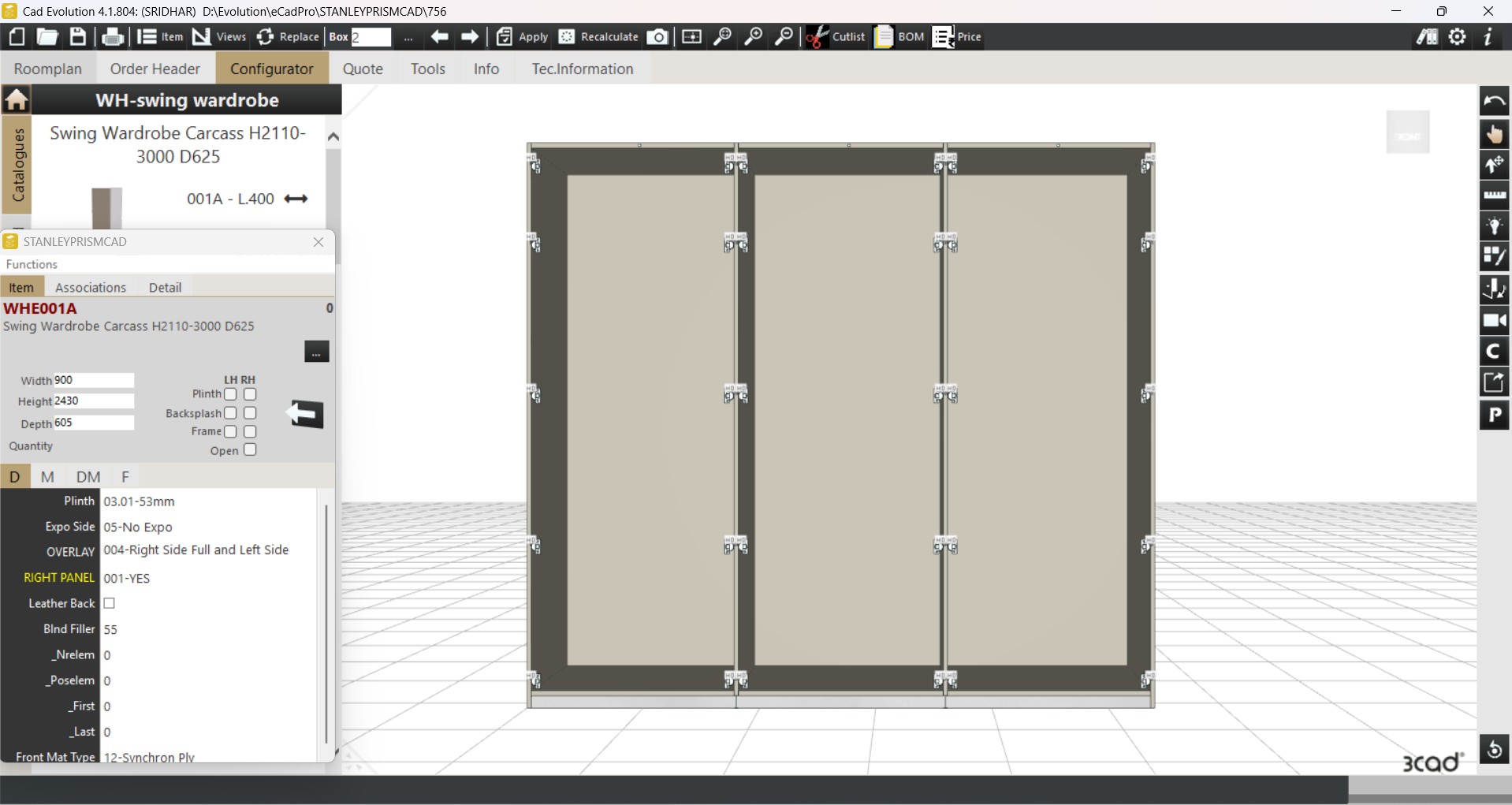

Wardrobe Panel Hole Optimization
VBScript logic for 3CAD Evolution
Problem: Designers had overlapping CNC holes when wardrobes were linked and divided.
Solution: Implemented dynamic `_nrelem` / `_poselem` calculations and conditional hole suppression so CNC output is production-ready.
Impact: Reduced manual corrections by ~70%.
View code snippet / logic
// Example VBScript snippet (short)
//For j = 0 To UBound(boxlist)
//boxID = CInt(boxlist(j))
//Set x = xamb.box(boxID)
//x.varregola("_nrelem") = calcola(UBound(boxlist) + 1)
//x.varregola("_poselem") = calcola(j + 1)
//x.varregola("_first") = IIf(j = 0, "1", "0")
//x.varregola("_last") = IIf(j = UBound(boxlist), "1", "0")
//Next
